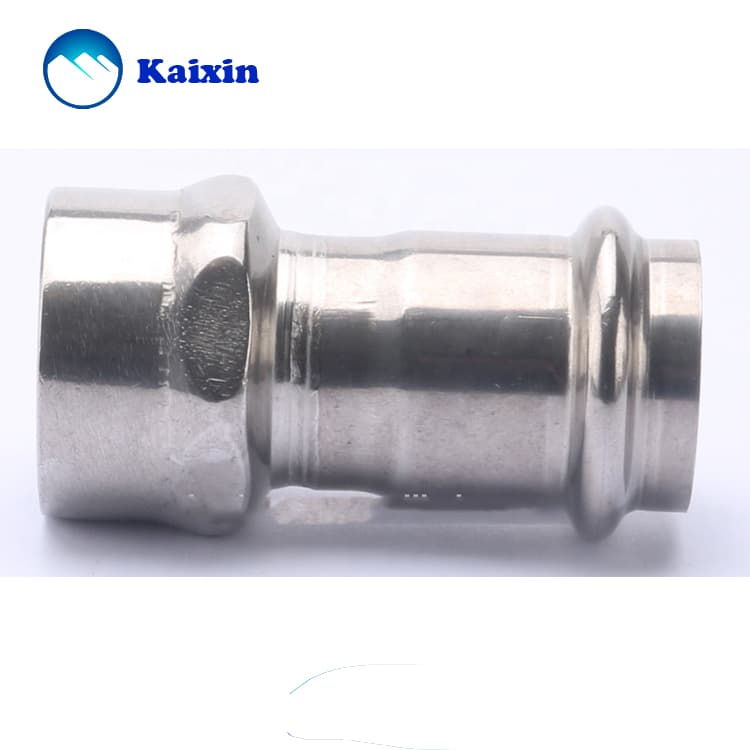

Stainless Steel V Profile Reducer Sizes chart and drawing

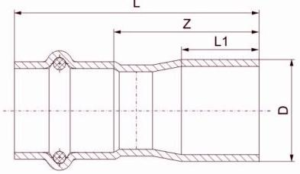

Stainless Steel reducing coupling drawing
| Reducing Coupling Size chart | |||||||
| Nominal Tamaño (milímetros) PXI |
Nominal Tamaño (Pulgadas) |
(milímetros) | Z (milímetros) |
L1 (milímetros) |
(milímetros) | T1 (milímetros) |
T2 (milímetros) |
| 15×12 | 1/2×1 /2 | 56 | 34 | 24 | 18 | 1.5 | 1.0 |
| 20× 15 | 3/4× 1/2 | 64 | 42 | 24 | 22 | 1.5 | 1.0 |
| 25× 15 | 1×1/2 | 72 | 50 | 26 | 28 | 1.5 | 1.0 |
| 25× 20 | 1×3/4 | 63 | 40 | 26 | 28 | 1.5 | 1.2 |
| 32× 20 | 11/4×3/4 | 73 | 50 | 29 | 35 | 1.5 | 1.2 |
| 32× 25 | 11/4×1 | 69 | 45 | 29 | 35 | 1.5 | 1.2 |
| 40×20 | 11/2×3/4 | 82 | 59 | 38 | 42 | 1.5 | 1.2 |
| 40× 25 | 11/2×1 | 84 | 60 | 38 | 42 | 1.5 | 1.2 |
| 40×32 | 11/2×11/4 | 77 | 50 | 38 | 42 | 1.5 | 1.5 |
| 50× 25 | 2×1 | 94 | 70 | 42 | 54 | 1.5 | 1.5 |
| 50× 32 | 2×1 1/4 | 96 | 69 | 42 | 54 | 1.5 | 1.5 |
| 50×40 | 2×1 1/2 | 101 | 65 | 42 | 54 | 1.5 | 1.5 |
Application of Stainless Steel V Profile Reducer
The application of stainless steel compression fittings in pipelines is as follows:
1. The main advantage of the clamp type tubería de acero inoxidable is that its water pipe connection is convenient and easy, which reduces many difficulties for the engineering team in the project and greatly improves work efficiency;
2. The service life of the compression type stainless steel pipe is very long, reaching around 70-100 years, which can basically have the same lifespan as the building. It can be decorated once and for all;
3. When connecting the clamping type stainless steel pipe, physical methods are used for clamping, which will not produce any harmful substances, ensuring the health of the users;
4. The simple and convenient characteristics of the clamping type stainless steel pipe during installation can make the construction site cleaner and tidier.
Compression fitting
The application of stainless steel compression fittings in pipelines is mainly based on the above introduction. Our stainless steel compression fittings are easy to install and have high construction efficiency. Por lo tanto, in pipeline engineering, the construction team will prefer the pipeline engineering of compression stainless steel pipes.
